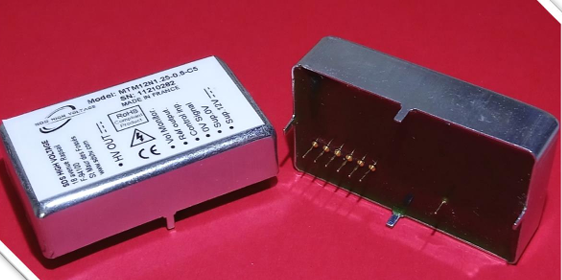

MTM系列PCB安裝超緊湊型高壓電源模塊SDS High Voltage

發布時間：2025-07-11 09:03:53 瀏覽：551

MTM系列PCB安裝超緊湊型高壓電源模塊SDS High Voltage

輸入電壓：12V ±0.5V / 15V ±0.5V / 24V ±1V

　　輸出電壓范圍：0–600V / 0–1kV / 0–1.25kV / 0–1.5kV

　　輸出功率：0.5W / 0.8W / 1W(取決于型號)

　　輸出電流：視型號而定，詳見選型表

　　電壓調節方式：外部電位器(≥10kΩ)或外部電壓(0–5V 或 0–10V)

　　電壓精度：±0.2%(最大電壓時)

　　負載/線性調節率：±0.01%

　　紋波：10–40mV(滿載時)

　　溫度系數：100ppm/°C(0–50°C)

　　工作溫度范圍：-40°C 至 +50°C

　　尺寸：46.0 × 12.0 × 24.6 mm

　　重量：約 35g

　　安裝方式：PCB 安裝，4 個安裝片

　　輸出方式：標準引腳輸出或可選飛線(50cm，直徑 2mm)

　　存儲溫度范圍：-40°C 至 +70°C

MTM series selection guide
#	Obsolete reference	Current reference	Vout	Pola-	lout/Pout	Vin	Control	Otption
#	system	system	Vout	rity	lout/Pout	Vin	Control	Otption
#1	MT12N601831-5F	MTM12NO.6-0.5-C5	600V	-	0.83mA/0.5W	12V	5V	Pin
#2	MT12N601831-10F	MTM12NO.6-0.5-C10		-			10V	Pin
#3	MT12N601831-5F-W	MTM12NO.6-0.5-C5-L					5V	Wire
#4	MT12N601831-10F-W	MTM12NO.6-0.5-C10-L		-			10V	Wire
#5	MT12P601831-5F	MTM12P0.6-0.5-C5		+			5V	Pin
#6	MT12P601831-10F	MTM12P0.6-0.5-C10		+			10V	Pin
#7	MT12P601831-5F-W	MTM12P0.6-0.5-C5-L		+			5V	Wire
#8	MT12P601831-10F-W	MTM12P0.6-0.5-C10-L		+			10V	Wire
#9	MT15N601132-5F	MTM15NO.6-0.8-C5			1.33mA/0.8W	15V	5V	Pin
#10	MT15N601132-10F	MTM15N0.6-0.8-C10			1.33mA/0.8W	15V	10V	Pin
#11	MT15N601132-5F-W	MTM15N0.6-0.8-C5-L	600V	-	1.33mA/0.8W	15V	5V	Wire
#12	MT15N601132-C10W	MTM15NO.6-0.8-C10-L	cont'd	-		cont'd	10V	Wire
#13	MT15P601132-5F	MTM15P0.6-0.8-C5		+			5V	Pin
#14	MT15P601132-10F	MTM15P0.6-0.8-C10		+			10V	Pin
#15	MT15P601132-5F-W	MTM15P0.6-0.8-C5-L		+			5V	Wire
#16	MT15P601132-10F-W	MTM15P0.6-0.8-C10-L		+			10V	Wire
#17	MT24N601167-5F	MTM24NO.6-1-C5			1.67mA/1.0W	24V	5V	Pin
#18	MT24N601167-10F	MTM24NO.6-1-C10					10V	Pin
#19	MT24N601167-5F-W	MTM24N0.6-1-C5-L		-			5V	Wire
#20	MT24N601167-10F-W	MTM24NO.6-1-C10-L		-			10V	Wire
#21	MT24P601167-5F	MTM24P0.6-1-C5		+			5V	Pin
#22	MT24P601167-10F	MTM24P0.6-1-C10		+			10V	Pin
#23	MT24P601167-5F-W	MTM24P0.6-1-C5-L		+			5V	Wire
#24	MT24P601167-10F-W	MTM24P0.6-1-C10-L		+			10V	Wire
#25	MT12N102501-5F	MTM12N1-0.5-C5	1000V	-	0.50mA/0.5W	12V	5V	Pin
#26	MT12N102501-10F	MTM12N1-0.5-C10		-			10V	Pin
#27	MT12N102501-5F-W	MTM12N1-0.5-C5-L		-			5V	Wire
#28	MT12N102501-10F-W	MTM12N1-0.5-C10-L		-			10V	Wire
#29	MT12P102501-5F	MTM12P1-0.5-C5		+			5V	Pin
#30	MT12P102501-10F	MTM12P1-0.5-C10		+			10V	Pin
#31	MT12P102501-5F-W	MTM12P1-0.5-C5-L		+			5V	Wire
#32	MT12P102501-10F-W	MTM12P1-0.5-C10-L		+			10V	Wire
#33	MT15N102801-5F	MTM15N1-0.8-C5			0.80mA/0.8W	15V	5V	Pin
#34	MT15N102801-10F	MTM15N1-0.8-C10					10V	Pin
#35	MT15N102801-5F-W	MTM15N1-0.8-C5-L					5V	Wire
#36	MT15N102801-10F-W	MTM15N1-0.8-C10-L		-			10V	Wire
#37	MT15P102801-5F	MTM15P1-0.8-C5		+			5V	Pin
#38	MT15P102801-10F	MTM15P1-0.8-C10		+			10V	Pin
#39	MT15P102801-5F-W	MTM15P1-0.8-C5-L		+			5V	Wire
#40	MT15P102801-10F-W	MTM15P1-0.8-C10-L		+			10V	Wire
#41	MT24N102102-5F	MTM24N1-1-C5		-	1.00mA/1.0W	24V	5V	Pin
#42	MT24N102102-10F	MTM24N1-1-C10		-			10V	Pin
#43	MT24N102102-5F-W	MTM24N1-1-C5-L					5V	Wire
#44	MT24N102102-10F-W	MTM24N1-1-C10-L					10V	Wire
#45	MT24P102102-5F	MTM24P1-1-C5		+			5V	Pin
#46	MT24P102102-10F	MTM24P1-1-C10		+			10V	Pin
#47	MT24P102102-5F-W	MTM24P1-1-C5-L		+			5V	Wire
#48	MT24P102102-10F-W	MTM24P1-1-C10-L		+			10V	Wire
#49	MT12N122401-5F	MTM12N1.25-0.5-C5	1250V	-	0.4mA/0.5W	12V	5V	Pin
#50	MT12N122401-10日	MTM12N1.25-0.5-C10					10V	Pin
#51	MT12N122401-5F-W	MTM12N1.25-0.5-C5-L					5V	Wire
#52	MT12N122401-10F-W	MTM12N1.25-0.5-C10-L	1250V	-	0.4mA/0.5W	12V	10V	Wire
#53	MT12P122401-5F	MTM12P1.25-0.5-C5	cont'd	+	Cont'd	Cont'd	5V	Pin
#54	MT12P122401-10F	MTM12P1.25-0.5-C10		+			10V	Pin
#55	MT12P122401-5F-W	MTM12P1.25-0.5-C5-L		+			5V	Wire
#56	MT12P122401-10F-W	MTM12P1.25-0.5-C10-L		+			10V	Wire
#57	MT15N122641-5F	MTM15N1.25-0.8-C5		-	0.64mA/0.8W	15V	5V	Pin
#58	MT15N122641-10F	MTM15N1.25-0.8-C10		-			10V	Pin
#59	MT15N122641-5F-W	MTM15N1.25-0.8-C5-L					5V	Wire
#60	MT15N122641-10F-W	MTM15N1.25-0.8-C10-L		-			10V	Wire
#61	MT15P122641-5F	MTM15P1.25-0.8-C5		+			5V	Pin
#62	MT15P122641-10F	MTM15P1.25-0.8-C10		+			10V	Pin
#63	MT15P122641-5F-W	MTM15P1.25-0.8-C5-L		+			5V	Wire
#64	MT15P122641-10F-W	MTM15P1.25-0.8-C10-L		+			10V	Wire
#65	MT24N122801-5F	MTM24N1.25-1-C5			0.80mA/1.0W	24V	5V	Pin
#66	MT24N122801-10F	MTM24N1.25-1-C10					10V	Pin
#67	MT24N122801-5F-W	MTM24N1.25-1-C5-L					5V	Wire
#68	MT24N122801-10F-W	MTM24N1.25-1-C10-L		-			10V	Wire
#69	MT24P122801-5F	MTM24P1.25-1-C5		+			5V	Pin
#70	MT24P122801-10F	MTM24P1.25-1-C10		+			10V	Pin
#71	MT24P122801-5F-W	MTM24P1.25-1-C5-L		+			5V	Wire
#72	MT24P122801-10F-W	MTM24P1.25-1-C10-L		+			10V	Wire
#73	MT12N152331-5F	MTM12N1.5-0.5-C5	1500V	-	0.33mA/0.5W	12V	5V	Pin
#74	MT12N152331-10F	MTM12N1.5-0.5-C10					10V	Pin
#75	MT12N152331-5F-W	MTM12N1.5-0.5-C5-L		-			5V	Wire
#76	MT12N152331-10F-W	MTM12N1.5-0.5-C10-L					10V	Wire
#77	MT12P152331-5F	MTM12P1.5-0.5-C5		+			5V	Pin
#78	MT12P152331-10F	MTM12P1.5-0.5-C10		+			10V	Pin
#79	MT12P152331-5F-W	MTM12P1.5-0.5-C5-L		+			5V	Wire
#80	MT12P152331-10F-W	MTM12P1.5-0.5-C10-L		+			10V	Wire
#81	MT15N152531-5F	MTM15N1.5-0.8-C5		-			5V	Pin
#82	MT15N152531-10F	MTM15N1.5-0.8-C10			0.53mA/0.8W	15V	5V	Pin
#83	MT15N152531-5F-W	MTM15N1.5-0.8-C5-L		-			10V	Wire
#84	MT15N152531-10F-W	MTM15N1.5-0.8-C10-L		-			5V	Wire
#85	MT15P152531-C5	MTM15P1.5-0.8-C5		+			10V	Pin
#86	MT15P152531-C10	MTM15P1.5-0.8-C10		+			5V	Pin
#87	MT15P152531-5F-W	MTM15P1.5-0.8-C5-L		+			10V	Wire
#88	MT15P152531-10F-W	MTM15P1.5-0.8-C10-L		+			5V	Wire
#89	MT24N152671-5F	MTM24N1.5-1-C5		-	0.97mA/1.0W	24V	5V	pin
#90	MT24N152671-10F	MTM24N1.5-1-C10		-			10V	Pin
#91	MT24N152671-5F-W	MTM24N1.5-1-C5-L		-			5V	Wire
#92	MT24N152671-10F-W	MTM24N1.5-1-C10-L		-			10V	Wire
#93	MT24P152671-5F	MTM24P1.5-1-C5	1500V	+	0.97mA/1.0W	24V	5V	pin
#94	MT24P152671-10F	MTM24P1.5-1-C10	cont'd	+	cont'd	cont'd	10V	Pin
#95	MT24P152671-5F-W	MTM24P1.5-1-C5-L		+			5V	Wire
#96	MT24P152671-10F-W	MTM24P1.5-1-C10-L		+			10V	Wire

深圳市立維創展科技有限公司優勢代理銷售SDS High Voltage高壓電源模塊產品線，歡迎咨詢了解。
